Gotham 11510 Hybrid Cable GAC-4/1 & 3 x 1.00mmå_ & balanced audio signal line

Applications

A: Highend balanced audio signal line for active loudspeaker systems

B: Tree conductor signal line for high power

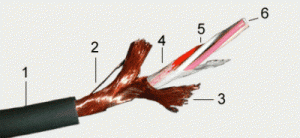

1 Jacket PVC, ø 0.28 in, grey (dark)                                                  A, B
2 Shield No. 1 Bare copper wires (38 AWG), 100% coverage          A
3 Shield No. 2 Bare copper wires (38 AWG), 100% coverage          A
4 Viscose fiber coat Counter wrapped to the quad conductors         A
5 Insulation PE, ø 0.05 in, white, red, pink and ivory, quad-twisted  A
6 Conductor Stranded bare copper wires, 7x32 AWG (23 AWG)      A

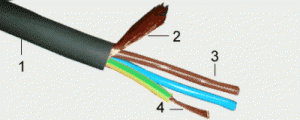

2 Shield Bare copper wires (38 AWG), 100% coverage                     B
3 Insulation PE, ø 0.12 in, high voltage tested                                      B
4 Conductor Stranded bare copper wires, 32x32 AWG (17 AWG)   B

Conductor resistance < 24.4 Ohm /1000 ft                                           A
Shielding resistance < 6.1 Ohm /1000 ft                                               A
Capacitance cond /cond < 16.8 nF /1000 ft                                          A
Capacitance cond /shield < 32 nF /1000 ft                                           A
Characteristic impedance at 20 kHz 80 Ohm                                       A
Test voltage cond /cond 500 V eff.                                                         A
Test voltage cond /shield 2000 V eff.                                                     A
Temperature range (flex) - 5° to +50° C                                                A
Temperature range (fix) -30° to +70° C                                                 A

Conductor resistance < 6.7 Ohm /1000 ft                                             B
Shielding resistance < 9.1 Ohm /1000 ft                                               B
Test voltage cond /cond 500 V eff.                                                         B
Test voltage cond /shield 5000 V eff.                                                     B
